Captivate more viewers at your events�and beyond



Complete sports production

3Play is a turnkey sports video production solution that gives you the creative control to attract new fans, bigger audiences, and more sponsors at a cost that puts replay in reach � and complete sports production at your fingertips.

Multi-Angle Capture: Monitor every angle of all live video sources. Switch between live shots, stored clips, and packages, and capture everything for live shows and post-production.

Side-by-Side Playback: Game-clock overlay and picture-in-picture simultaneous playback, make it possible for refs to tackle the tough decisions, while fans relive the drama and analysts provide the deeper story.

Multi-Speed Playback: Replay more dramatically�in real time, hyperspeed, or slo-mo�with razor-sharp clarity using pre-set or manual operation with your standard HD and SD cameras.

Real-Time Overlays: Display, position, scale, and crop any live or pre-produced video, animation, motion graphics, or network input source�even your telestration key drawn right over live programming.

High-End Visuals: Get the highest production value with already-included real-time cloth transitions, 3D video warping, and image transformations, or create custom animated transitions with the built-in Animation Store Creator app.

Highlight Clips: Audio, playback speed, transitions, and music let you transform top plays, turning-point decisions, and epic encounters into highlight reels for fans to relive the game.



3Play� 3P1 Technical Specifications

Video Input 4 x simultaneous external video inputs, supporting any combination of compatible sources
Network Video Input 4 x resolution-independent IP video inputs via NDI®
SDI Video Input 4 x 3G/HD/SD-SDI connections supporting video input in any combination of standard formats, resolutions, and frame rates1
  • 1080p: 59.94, 50, 29.97, 25, 24, 23.976
  • 1080i: 59.94, 50
  • 720p: 59.94, 50, 29.97, 25, 24, 23.976
  • 576i 50
  • 480i 59.94


1Available frame rates determined by session video standard (NTSC or PAL)

Network Video Output 2 x session-format IP video outputs via NDI®
SDI Video Output 4 x 3G/HD/SD-SDI connections supporting redundant delivery of 2x session- format video outputs
Multiviewer Output 1 x DVI user interface with multiviewer
1 x HDMI multiviewer
1 x DisplayPort multiviewer
Recording 4 x simultaneous recording channels
Recording Format QuickTime® (XDCAM HD compatible, 4:2:2 encoding, 24-bit audio, with timecode)2


2 QuickTime Player not required for playback in common NLE applications

Grab Grab full-resolution, deinterlaced still images from inputs and outputs
Export Export video and image files to social media, FTP, local or external volumes, and network servers, with optional transcoding
DSK 1 x DSK channel per output, with independent source selection and transition
Telestration Integrated NDI® Telestrator Pro technology supporting real-time telestration and transport control from compatible devices over the network
Asset Management Asset management system supporting metadata entry, tagging, filtering, organization, navigation, bookmarking, and integration with compatible MAM platforms
Local Audio Input 4 x SDI embedded 1 x Balanced XLR stereo pair (Line) 3 x Balanced 1/4� stereo pairs (Line)
Local Audio Output 4 x SDI embedded

1 x Balanced XLR stereo pair 1 x Balanced 1/4� stereo pair 1 x Stereo 1/4" (phones)
Network Audio Native support for network audio input and output via NDI®
Processing Video: Floating Point YCbCr +A 4:4:4:4
Audio: Floating Point, 96 kHz
Throughput Latency ~1.0-1.5 frames
A/V Standards
  • 3G-SDI video conforms to SMPTE 424M (Level A)
  • HD-SDI video conforms to SMPTE 292M
  • SD video conforms to SMPTE 259M and ITU-R BT.656
  • Analog audio levels conform to SMPTE RP-155
Genlock Genlock input supporting SD (Bi-level) or HD (Tri-level) reference signals
Macros Record, store, edit, and automate commands and user-configured operation sequences, including support for cross-platform automation between supported systems
AMP Supports Advanced Media Protocol for remote control via compatible third-party production systems
GPI Supports GPI signals via JLCooper Electronics eBox GPI interface
MIDI Support for standard MIDI protocol enabling third-party device control
NIC 2 x 1 Gigabit NIC

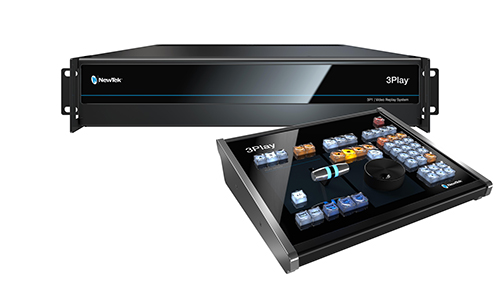

System Physical 3Play 3P1
2RU chassis with 400W PSU and multi-tiered hardware and software fail-safe
  • 19.0 x 3.5 x 19.57 in (48.3 x 8.9 x 49.7 cm) with rack ears attached
  • ~ 26 lbs (~12 kg)
3Play 3P1 (Redundant Power Option)
3RU chassis with 500W redundant PSU and multi-tiered hardware and software fail-safe
  • 19.0 x 5.25 x 19.57 in (48.3 x 13.34 x 49.7 cm) with rack ears attached
  • ~ 34 lbs (~15 kg)

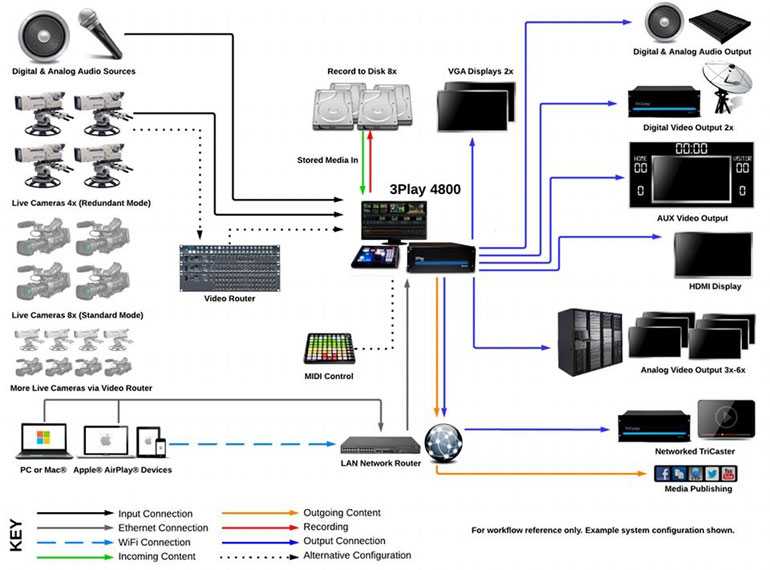

3Play System Diagram
